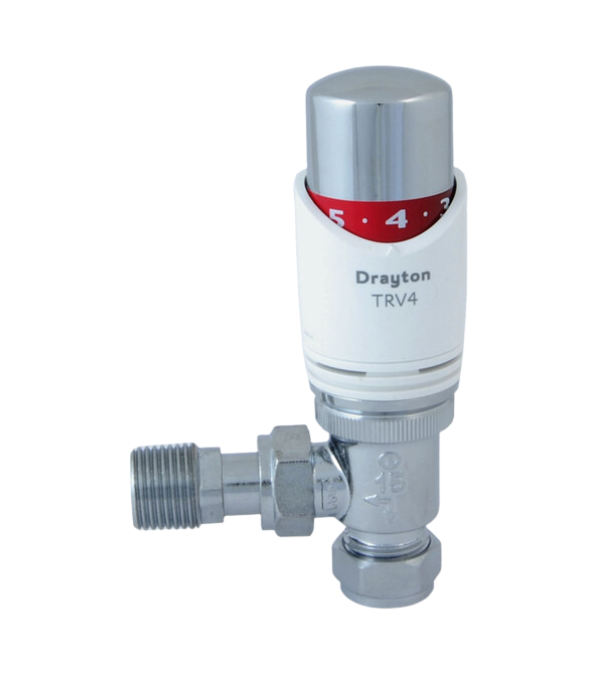

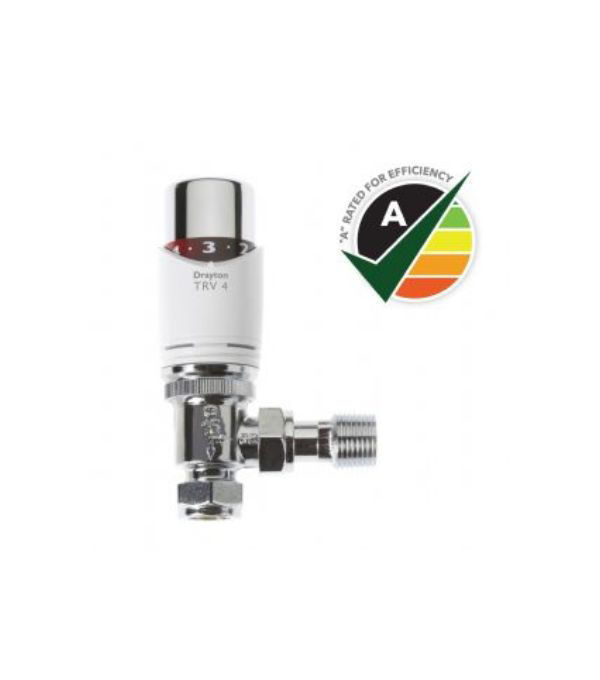

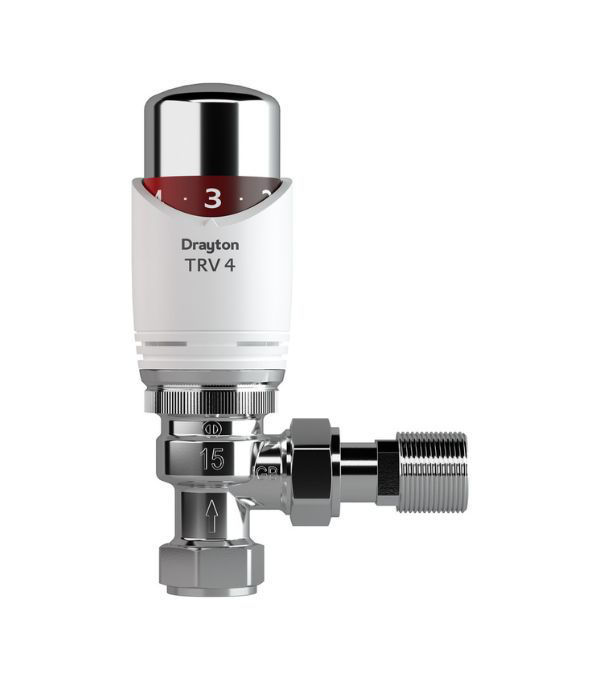

Drayton TRV4 15mm Angled Thermostatic Radiator Valve | 07 05 150

Key features:

• 15mm angled thermostatic radiator valve


• Drayton TRV4 Classic range


• Class I energy efficiency rating


• Accurate liquid sensor for responsive temperature control


• Reverse-flow capability


• Non-stick internals


• Double gland seal for reliable performance


• Slimline, contemporary design


• Suitable for balancing the heating system using a balancing key


• Temperature setting range approximately 10°C to 30°C


• Frost protection below 8°C


• Setting positions 1 to 5 plus MAX


• Maximum flow temperature 110°C


• Maximum sensor temperature 50°C


• Conforms to BS EN 215

Specifications:

• Part number: 07 05 150


• Connection: 15mm


• Orientation: Angled


• Temperature range: Approx. 10°C to 30°C


• Energy efficiency: Class I


• Hysteresis: 0.4K


• Water temperature influence: 0.8K


• Differential pressure influence: 0.15K


• Response time: 20 minutes


• Control accuracy: 0.6


• Sensitivity: 0.22mm/°C


• Max. flow temperature: 110°C


• Max. sensor temperature: 50°C


• Frost protection: Below 8°C


• Standard: BS EN 215
