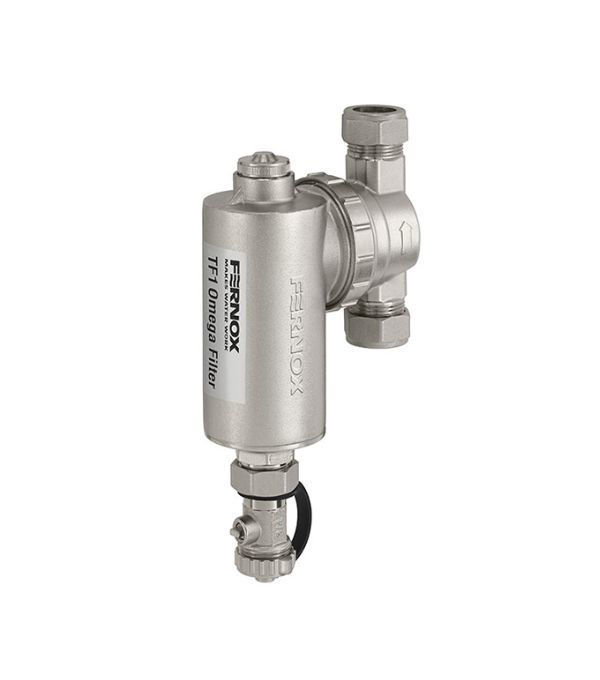

Fernox TF1 Omega Filter 22mm Slip Socket 62248

Key features

• High-performance central heating system filter


• 22mm slip socket connection


• Powerful neodymium magnet captures magnetic debris


• Hydronic Particle Separation captures non-magnetic contaminants


• Designed for domestic heating systems


• Compact design for restricted installation spaces


• Can be installed horizontally or vertically


• Can be positioned up to 45° from vertical


• Suitable for both flow directions


• Low pressure loss


• Easy to clean without dismantling


• Nickel-plated forged brass construction


• Can be used as a dosing point for Fernox Express products


• Suitable for water, inhibited glycol solutions and Fernox system additives


• 25-year warranty

Technical specifications

Product code: 62248
Brand: Fernox
Product: TF1 Omega Filter
Fit type: Slip Socket
Fit size: 22mm
Application: Domestic heating systems
Body: Nickel-plated forged brass
Manifold: Nickel-plated forged brass
Magnet: Neodymium
Hydronic Particle Separator: Stainless steel
Maximum glycol concentration: 50%
Maximum operating pressure: 10 bar
Maximum flow rate: 50 L/min
Maximum working temperature: 100°C
Installation: Horizontal or vertical
Warranty: 25 years
Unit weight: 1.77kg
Unit dimensions: 70 × 190 × 132mm
