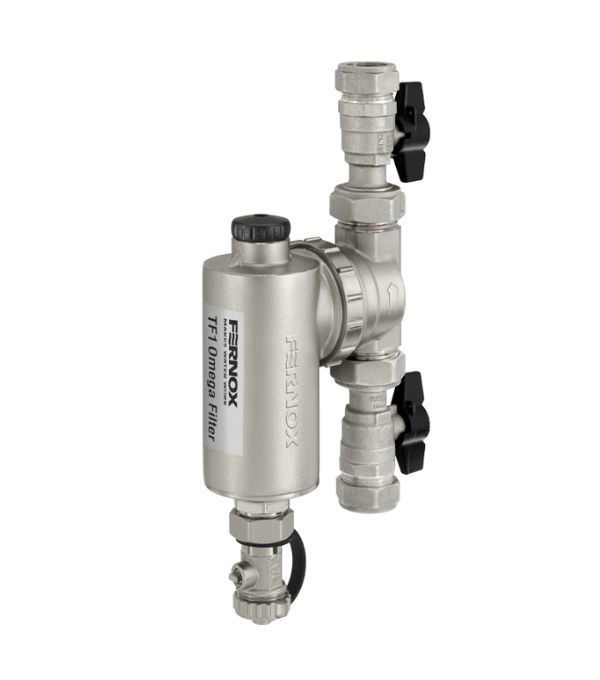

Fernox TF1 Omega Filter 22mm With Valves 62249

Key Features

• High-performance in-line central heating filter


• 22mm connection with valves


• Powerful neodymium magnet


• Hydronic Particle Separation (HPS) technology


• Captures magnetic and non-magnetic system contaminants


• Helps protect boilers from circulating corrosion debris


• Compact design for restricted installation spaces


• Suitable for horizontal and vertical pipework


• Can be positioned up to 45° from vertical


• Can be installed in either flow direction


• Easy to clean without dismantling the filter


• Forged, nickel-plated brass construction


• Suitable for water, inhibited glycol solutions and Fernox system additives


• Can also be used as a convenient dosing point for Fernox chemical treatments


• 25-year warranty

Technical Specifications

• Brand: Fernox


• Product: TF1 Omega Filter


• Product Code: 62249


• Fit Size: 22mm


• Fit Type: With Valves


• Warranty: 25 years


• Maximum Operating Pressure: 10 bar


• Maximum Flow Rate: 50 L/min


• Maximum Working Temperature: 100°C


• Maximum Glycol Concentration: 50%


• Capture Rate: Up to 100% of system contaminants


• Filter Body: Forged nickel-plated brass


• Manifold: Forged nickel-plated brass


• Magnet: Neodymium


• Particle Separator: Stainless steel


• Drain Valve: Nickel-plated brass


• Isolation Valves: Nickel-plated brass


• Seals and Washers: EPDM


• Dimensions: 80 × 245 × 145mm


• Unit Weight: 1.95kg


• Barcode: 5014551622494

Fernox recommends installing the TF1 Omega Filter on the return pipe to the boiler. The filter is designed to maintain flow even when significant debris has been collected, helping to minimise flow restriction.
