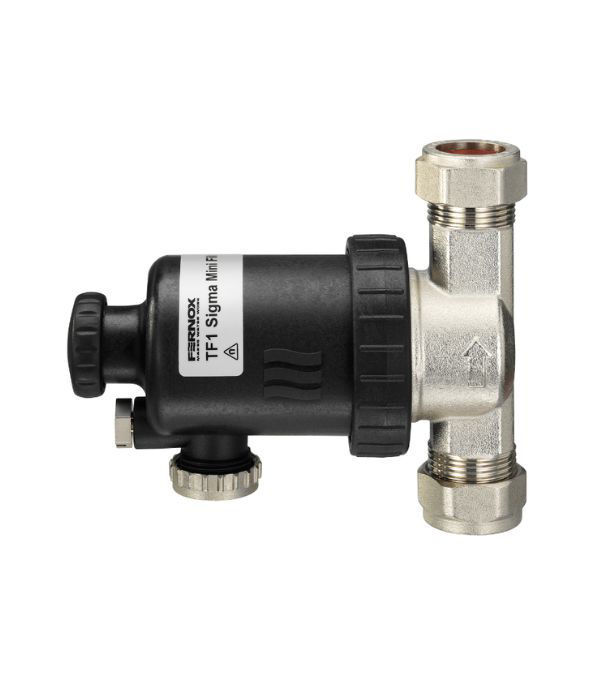

Fernox TF1 Sigma Mini 22mm Slip Socket Magnetic Filter 62708

Key features

• Compact magnetic central heating system filter


• 22mm slip socket connection


• Ideal for restricted spaces around boilers


• Requires as little as 105mm clearance


• Powerful neodymium magnet captures magnetic debris and magnetite


• High collection efficiency with minimal pressure loss


• Sealed design prevents the filter from blocking


• Quick and clean servicing through the drain point


• No dismantling required for cleaning


• Can be installed on horizontal, vertical or 360° pipework


• Ideally installed on the boiler return


• Can be used as a dosing point for Fernox chemical treatments


• Maximum flow rate: 30 L/min


• Maximum working pressure: 5 bar


• Suitable for temperatures from 0°C to 100°C


• Suitable for inhibited glycol solutions up to 50%


• 10-year warranty

Technical specifications

Product code: 62708
Brand: Fernox
Product: TF1 Sigma Mini
Fit type: Slip Socket
Fit size: 22mm
Application: Domestic central heating systems
Filter body: Glass-reinforced nylon
Manifold: Nickel-plated brass
Magnet: High-powered neodymium
Seals and washers: EPDM
Maximum working pressure: 5 bar / 72 psi
Maximum flow rate: 30 L/min
Maximum glycol concentration: 50%
Working temperature: 0°C to 100°C
Installation: Horizontal, vertical or 360° pipework orientation
Warranty: 10 years
Weight: 0.87kg
Dimensions: 75 × 173 × 128mm
