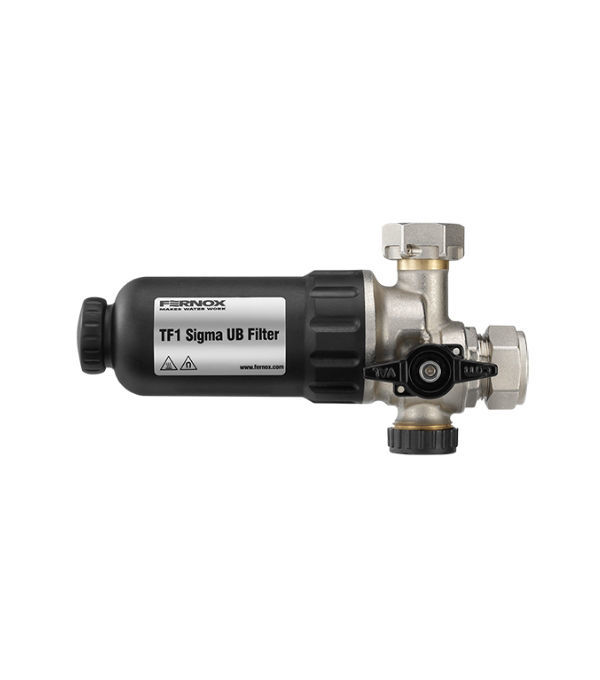

Fernox TF1 Sigma UB 22mm Under Boiler Magnetic Filter 62631

Key features

• Fernox TF1 Sigma UB magnetic system filter


• 22mm compression connections


• Product code: 62631


• 10-year warranty


• Compact under-boiler design


• Ideal for restricted installation spaces


• Designed for concealed pipework installations


• Horizontal installation on the boiler return


• Powerful neodymium magnet


• Captures circulating corrosion debris and magnetite


• High collection efficiency


• Designed not to block or restrict system flow


• Integrated three-way isolation and cleaning valve


• Easy servicing via the drain point


• Can be used with Fernox chemical treatments and system additives


• Suitable for water and inhibited glycol solutions


• Maximum glycol concentration: 50%

Technical specifications

• Brand: Fernox


• Product: TF1 Sigma UB Filter


• Product code: 62631


• Connection: 22mm compression


• Filter body: Glass-reinforced engineering polymer


• Manifold: Nickel-plated brass


• Seals and washers: EPDM


• Magnet: Neodymium


• Maximum working pressure: 5 bar


• Maximum flow rate: 40 L/min


• Maximum working temperature: 100°C


• Maximum glycol concentration: 50%


• Capture rate: Up to 100% of system contaminants


• Dimensions: 78 × 214 × 102mm


• Weight: 0.93kg


• EAN: 5014551626317


• Warranty: 10 years
